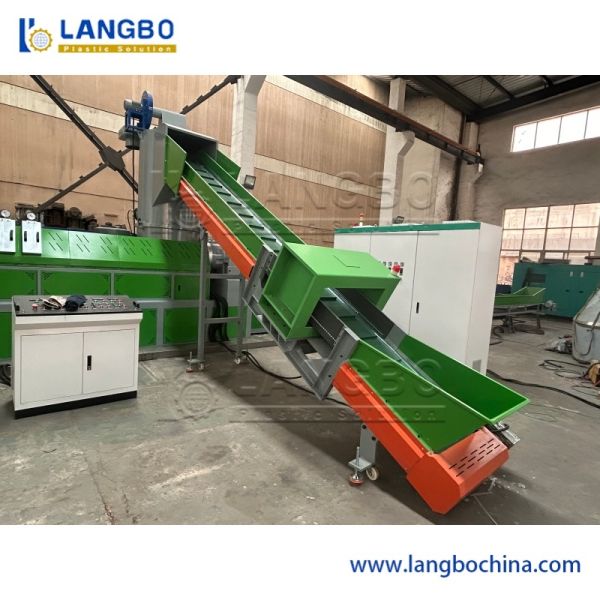

Plastic PE/PP/HDPE/LDPE Film/Bag/Woven Bag/Non Woven/Fiber/Granulating Line/Granulation Plant/Agglomeration Recycling/Compact Pelletizing Machine
short description
This line is mainly used for producing pellets. Through extruding, making stand, cooling and cutting into pellets, the storage of the pipes raw material is more convenient. In the recent years, the sales market for pellets is also excellent. Our granulating line used including extruder, cooling tank, air knife, pelletizer and vibration sieve. All the components are top-brand quality and long working lifetime.
Process Flow
Raw material+ additive → Mixing → Conveying feeding → hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
Specification
| Model | Diameter(mm) | L/D | Speed(rpm) | Power(kw) | Output(kg/h) |
| LB40-B | 41 | 24-80 | ~600 | 30~37 | 100~130 |
| LB52-B | 51.4 | 24-80 | ~600 | 55~75 | 150~250 |
| LB65-B | 62.4 | 24-80 | ~600 | 90~110 | 300~400 |
| LB75-B | 71 | 24-80 | ~600 | 132~160 | 400~500 |
| LB85-B | 81 | 24-80 | ~600 | 220~250 | 700~800 |
| LB90-B | 93 | 24-80 | ~600 | 280~315 | 900~1000 |
| LB110-B | 110 | 24-80 | ~600 | 400~450 |
|
Production Description
Pelletizer
Pelletizers are completely made of AISI 304 stainless steel. Pelletizing blades and die are made of special alloy steels and coatings according to the type of plastic. By mobile parts, maintenance period is minimized. Speed control for pelletizing blades enables changing granule size during operation.
Vibration Sieve
Granules' size controlled by vibration sieve too small or too big granules will be flited out. The only granules, which fit the size requirement will be transported into storage silo by air.
Parallel Twin Screw Extruder
Heavy Load Gearbox for reliable running
High precise screw part for excellent screw building
High quality electrical parts and worldwide famous brand for drive unit
Easy Temperature setting and indication
Degassing section for tailored processing demand
Hydraulic Melt filter Mould
304 Steel screens with tailored mesh size
Hydraulic plate or cylinder filter body available
Bronze heater for high heating efficiency
Water Tank Tempering
Water cycle for evenly temperature distribution and well cooling effect
Strand Holders adjust strand in the water for cooling and out of the water for drying
Advanced manufacture technology for robust structure and precise adjustment
Air Knife
High speed knife for strand dewatering
